SIX-FUNCTION AEROSOL FREES SEIZED PARTS

QUICK RELEASE ACTION

HIGH PENETRATING AND DEOXIDISING POWER

ANTI-WEAR LUBRICANT: SRV TEST 0.095

STATIC AND DYNAMIC CORROSION PROTECTION

REMOVES OILS, LUBRICANTS AND INORGANIC CONTAMINATION

INSTANTANEOUSLY REMOVES TAR AND BITUMEN

 iBiotec DP 6 AEROSOL






DESCRIPTION
DP6 iBiotec a universal penetrating liquid which frees seized or corroded parts, lubricates,
cleans, displaces moisture, prevents corrosion, and removes tar.
It does not contain silicon oil, chlorinated solvent, or ortho-phosphoric acid.
DP6 iBiotec removes carbons, gums, light or heavy hydrocarbons.
It doesn’t become resinous.
This product has a low surface tension.
It has no unpleasant petroleum odor, but a natural pine odor.
DP6 iBiotec has a good UV resistance, and is nonirritant.
It has a low tension surface.
Water repellent, it can be applied on wet surfaces.
It leaves a protective anti-corrosive film.
DP6 iBiotec is compatible with plastics, elastomers, and is safe on paints.



DOMAINS OF USE

Telescopic antennas
Buildings (cleaning and reviving surfaces)
Nuts and bolts
Cables under sheaths
Bodywork (detarring)
Hinges
Columns
Electromechanical contacts

Degumming of machine tool slides
Degreasing of chains
Elimination of calcinated fats in bearings
General maintenance
Slides
Guides
Pivots, axles


INSTRUCTIONS FOR USE

Shake the spray a few seconds. Pulverize on surfaces to be treated without excess..
Usable spray in all positions.



HIGHLY LUBRICANT, WEAR-RESISTANT

FRICTION COEFFICIENT: SRV FRICTION TEST

The SRV friction test is used to determine a friction coefficient. The lower the friction coefficient:

- the lower the energy consumption

- the lower the forces required for disassembly

- the lower the level of operating noise.

As seen on the graph below, DP 6 has an extremely low and particularly constant friction coefficient. The plot does not exhibit any peaks which would indicate seizure between surfaces.

The peaks shown for a standard releasing agent and a “high-quality” releasing agent demonstrate the low lubricating properties of certain releasing agents.

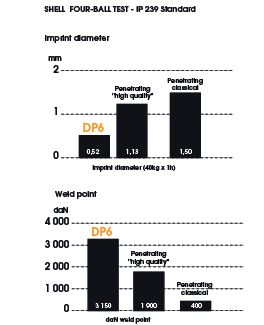

SHELL FOUR-BALL TEST – IP 239 STANDARD (INSTITUTE OF PETROLEUM)



The IP 239 standard specifies a method for determining two parameters: the imprint diameter and the weld point.

- The smaller the imprint diameter, the higher the weld resistance of the product.

- The higher the weld point, the higher the load resistance of the product.

The tests show that DP 6 has high weld resistance and load resistance.







BETTER PENETRATION

THE REMARKABLE RELEASING CAPACITY OF DP 6 INVOLVES TWO MECHANISMS:

- A very low surface tension of 24.2 dyne/cm, measured according to the ISO 6295 standard, ensuring high capillarity, enhanced by specific active ingredients that enable it to penetrate all mechanisms, even when surface roughness is low and clearances are tight.

- High adsorption into surfaces, enabling oxides to be broken down more easily during mechanical disassembly operations.

MIL STD A 907 E/D provides a method for measuring the torque needed to dismantle a bolted assembly, using a torque wrench. The forces are expressed in Newtons per metre. The results of the tests performed show very low dismantling torque after applying DP6.





DIELECTRIC

DP 6 has a breakdown voltage of 63,000 V measured in accordance with the IEC 156 standard. It has very high dielectric properties.

DP 6 is used for the maintenance of locked-out electrical equipment.



GREATER PROTECTION

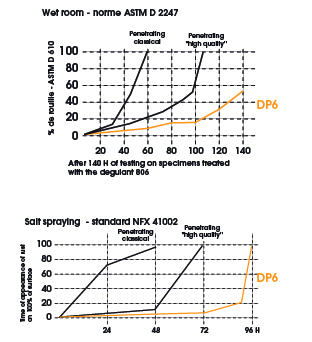

Internationally recognised tests have shown that a protective film of DP 6 can act as an effective protective oil that halts and provides long-lasting protection against rust and oxidation.





IN PARTICULAR, THE TESTS HAVE PROVEN :

- Easier release of seized assemblies, tools and mechanical parts.

- Effective prevention of seizing, when DP 6 is used during assembly.

- Better preservation of parts, even under harsh conditions such as sea transport.



SAFER

DP 6 offers guarantees :



For the environment :



DP 6 is guaranteed free of CFCs, which are suspected of destroying the stratospheric ozone layer, and free of butane and propane, which are suspected of generating excess tropospheric ozone.



For the user :



DP 6 is guaranteed free of chlorinated solvents, including class 3 carcinogens such as PER, TRI and methylene chloride. It does not contain any aromatic or benzene compounds.



Unlike aerosols propelled by butane and propane, there is no risk of accidental flashback. The non-flammable and non-explosive propellant thus avoids the risk of saturation in confined spaces. DP 6 is compatible with all materials with which it is in contact: metals, plastics, coated surfaces.





                             Download the data sheet



PHYSICO-CHEMICAL PROPERTIES TYPICALS

PROPERTY

STANDARD

VALUE

UNITS

Appearance

Visual

fluid

-

Colour

Visual

amber

-

Odour

Olfactory

pine

-

Density at 25°C

EN ISO 12185

830

kg/m3

Refraction index

ISO 5661

1.4550

-

Freezing point

ISO 3016

-20

°C

Water solubility

  -

%

Kinematic viscosity at 40°C

EN 3104

2.1

mm²/s

Acid value

EN 14104



mg KOH/g

Iodine value

EN 14111

0

g I2/100g

Water content

ISO 6296



ppm

PERFORMANCE PROPERTIES AS A DEGREASING SOLVENT

PROPERTIES

STANDARD

VALUE

UNITS

KB index

ASTM D1133

97

-

Evaporation rate

  -

70

min

Surface tension at 20°C

ISO 6295

24.2

Dyne/cm

Breakdown voltage at 20°C

  EN 60156 / IEC 156

63

kV

Copper blade corrosion, 100 h at 40°C

ISO 2160

1a

Class

PERFORMANCE PROPERTIES AS A LUBRICANT

PROPERTIES

STANDARD

VALUE

UNITS

SRV friction test

ASTM D5707

0.09

Coefficient

Shell four-ball test

Imprint diameter

IP 239

ASTM D2596

0.52





mm

Shell four-ball test

ICS weld point

IP 239

ASTM D2596



3200



daN

Potential noise reduction

GRW method

 -20

dB

FIRE SAFETY PROPERTIES

PROPERTIES

STANDARD

VALUE

UNITS

Flash point (closed cup)

ISO 2719

64

°C

Autoignition temperature

ASTM E659

230

°C

Lower explosive limit

EN 1839

% (volume)

Upper explosive limit

EN 1839

% (volume)

TOXICOLOGICAL PROPERTIES

PROPERTIES

STANDARD

VALUE

UNITS

Anisidine value

ISO 6885

-

Peroxide value

ISO 3960

meq(O2)/kg

TOTOX (anisidine index +2× peroxide index)

  -

-

Content of CMR, irritant and corrosive substances

CLP regulation

%

Content of residual methanol derived from transesterification processes

GC-MS

%

Aldehyde content

GC-MS

0

ppm

ENVIRONMENTAL PROPERTIES

PROPERTIES

STANDARD

VALUE

UNITS

Water hazard

WGK Germany

Class

Bioaccumulation

Partition index (n-octanol/water)



OCDE 107



 <3



log KOW

Vapour pressure at 20°C

EN 13016

   0.25

hPa

Benzene content

ASTM D6229

0

%

Total halogen content

Bomb calorimeter

GC MS

ppm

Chlorinated solvent content

  -



Aromatic solvent content

  -

0



Content of substances hazardous to the environment

CLP regulation

%

Content of compounds with non-zero GWP

  -

0

%

Content of compounds with non-zero ODP

  -

%

Carbon balance, life cycle analysis.

ISO 14040

 6.25

Kg, carbon equivalent



PRESENTATIONS





















Aerosol 650 ml
